0031417 | LAPP
PVC data cable, 5-wire, 0.75 mm², AWG 19, black, 0031417
Order No.: 33P2899
EAN: 4044777948284
MPN:
0031417
UNITRONIC FD Li2YCY (TP) A BE 5x2x0,75
Series: UNITRONIC FD Li2YCY (TP) A BE
Unit Price (€ / mtr.)
13.1614 € *
Standard delivery time from the manufacturer is: 6 Weeks

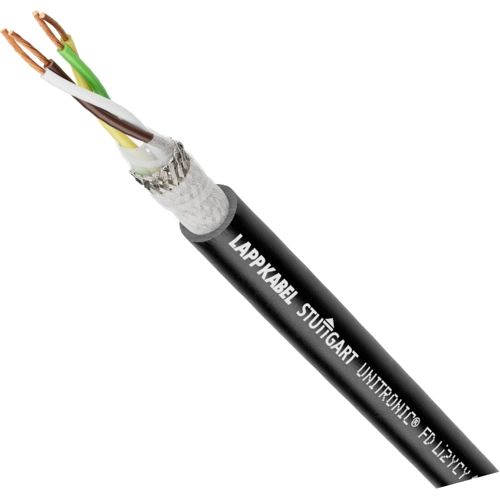

Shielded data cable, 0031417, LAPP
The 0031417 is a high flexible, screened and twisted pair data cable with an outer sheath of PVC. The cable with low capacitance is designed especially for use in power chains, automatic manipulators, in permanently moved machine parts.
Features
- Mechanical and plant engineering
- Suitable for outdoor use
- Flame-retardant
- Interference signals
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Colour | black | |
| Cable cross-section | 0.75 mm² | |
| Outer diameter | 11.9 mm | |
| Version | data cable | |
| Material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| AWG cross-section | AWG 19 | |
| Number of cores | 5 | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Shielding | shielded | |
| Core insulation material | PE | |
| Drag chain suitable | Yes | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | QU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
