0031402 | LAPP
PVC data cable, 8-wire, 0.34 mm², AWG 22, black, 0031402
Order No.: 33P2907
EAN: 4044777947836
MPN:
0031402
UNITRONIC FD Li2YCY (TP) A BE 8X2X0,34
Series: UNITRONIC FD Li2YCY (TP) A BE
Unit Price (€ / mtr.)
9.3177 € *
Standard delivery time from the manufacturer is: 6 Weeks

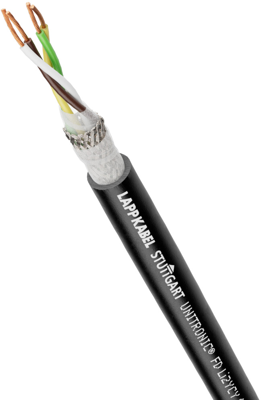

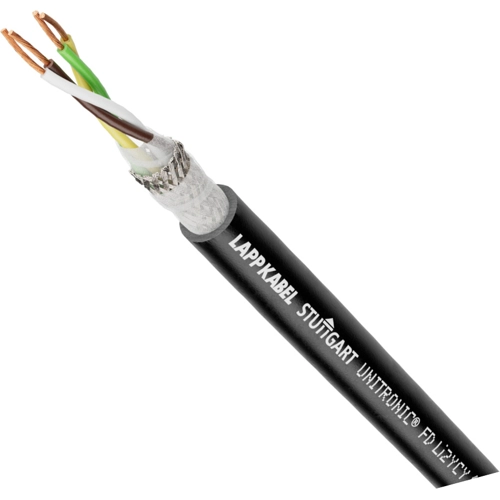

Shielded data cable, 0031402, LAPP
The 0031402 is a high flexible, screened and twisted pair data cable with an outer sheath of PVC. The cable with low capacitance is designed especially for use in power chains, automatic manipulators, in permanently moved machine parts.
Features
- Mechanical and plant engineering
- Suitable for outdoor use
- Flame-retardant
- Interference signals
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, bright | |
| Core insulation material | PE | |
| Material | PVC | |
| Version | data cable | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Halogen free | No | |
| Outer diameter | 11.8 mm | |
| AWG cross-section | AWG 22 | |
| Drag chain suitable | Yes | |
| Colour | black | |
| Number of cores | 8 | |
| Shielding | shielded | |
| Cable cross-section | 0.34 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
