0027425 | LAPP
PVC data cable, 2-wire, 0.25 mm², gray, 0027425
Unit Price (€ / mtr.)
2.3800 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
238.00 € *
Price list
Quantity
Price per unit*
100 mtr.
2.3800 €
500 mtr.
2.2372 €
*incl. VAT plus shipping costs
Subject to prior sale

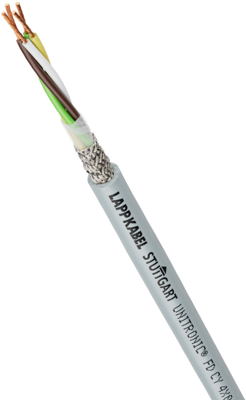

Screened highly flexible data transmission cable, 0027425, LAPP
The 0027425 is a high flexible, screened data cable with an outer sheath from PVC. The cable is designed for special use in power chains, automatic manipulators and in permanently moved machine parts.
Features
- Interference signals
- Low-adhesive surface
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Cable material | copper, bright | |
| Version | data cable | |
| Number of cores | 2 | |
| Shielding | shielded | |
| Core insulation material | PVC | |
| Cable cross-section | 0.25 mm² | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Drag chain suitable | Yes | |
| Outer diameter | 4.9 mm | |
| Colour | gray | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
