0022624 | LAPP

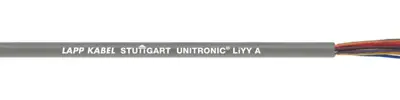

Special PVC data cable, 24-wire, AWG 22-7, gray, 0022624
Order No.: 33P217
EAN: 4044774706122
MPN:
0022624
UNITRONIC LiYY A 24X22AWG/7
Series: UNITRONIC LiYY A
Unit Price (€ / mtr.)
5.3193 € *
Standard delivery time from the manufacturer is: 6 Weeks
Data transmission cable, 0022624, LAPP
This product is a data cable for low frequency applications with UL and CSA approval. The cable is intended for internal and external wiring of devices, machines and plants. It is designed for fixed installation and for conditional flexible use. It is used in dry and damp interiors but not appropriate for outside usage.
Features
- Flame-retardant
- Core insulation made of PVC
Applications
- Wiring of devices, machines and plants
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Outer diameter | 11.6 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 22-7 | |
| Number of cores | 24 | |
| Core insulation material | PVC | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Halogen free | No | |
| Material | special PVC | |
| Cable material | copper, tin-plated | |
| Version | data cable | |
| Shielding | unshielded | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
