0022405 | LAPP

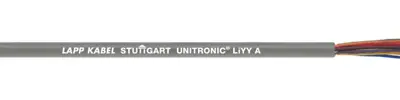

Special PVC data cable, 5-wire, AWG 26-7, gray, 0022405
Order No.: 33P200
EAN: 4044774705767
MPN:
0022405
UNITRONIC LiYY A 5X26AWG/7
Series: UNITRONIC LiYY A
Unit Price (€ / mtr.)
0.714 € *
Standard delivery time from the manufacturer is: On Request
Data transmission cable, 0022405, LAPP
This product is a data cable for low frequency applications with UL and CSA approval. The cable is intended for internal and external wiring of devices, machines and plants. It is designed for fixed installation and for conditional flexible use. It is used in dry and damp interiors but not appropriate for outside usage.
Features
- Flame-retardant
- Core insulation made of PVC
Applications
- Wiring of devices, machines and plants
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| AWG cross-section | AWG 26-7 | |
| Colour | gray | |
| Number of cores | 5 | |
| Outer diameter | 4.3 mm | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | unshielded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Cable material | copper, tin-plated | |
| Halogen free | No | |
| Core insulation material | PVC | |
| Material | special PVC | |
| Version | data cable |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
