0012624 | LAPP

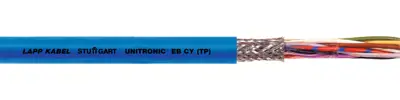

PVC data cable, 6-wire, 0.75 mm², blue, 0012624
Order No.: 33P2784
EAN: 4044774732909
MPN:
0012624
UNITRONIC EB CY (TP) 6x2x0,75
Series: UNITRONIC EB CY (TP)
Unit Price (€ / mtr.)
10.7814 € *
Standard delivery time from the manufacturer is: 6 Weeks
Screened data transmission cable, 0012624, LAPP
The 0012624 is a flexible data cable with a blue outer sheath for intrinsically safe circuits for use in explosive areas. The cable with blue outer sheath should only be used if no confusion with intrinsically safe circuits is possible. At room temperature it is widely resistant to certain oils and resistant to acids. The core of is twisted in pairs in order to decouple the conductor circuits and to protect it against the external capacitive influence.
Features
- Interference signals
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (active) | -5 °C to 70 °C | |
| Cable material | copper, bright | |
| Drag chain suitable | No | |
| Version | data cable | |
| Material | PVC | |
| Colour | blue | |
| Outer diameter | 12.3 mm | |
| Cable cross-section | 0.75 mm² | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Halogen free | No | |
| Shielding | shielded | |
| Number of cores | 6 | |
| Core insulation material | PVC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
