74200600 | LAPP
Receptacle, 0.14-1.0 mm², AWG 26-18, crimp connection, gold-plated, 74200600
Order No.: 30P1549
EAN: 4044773715361
MPN:
74200600
EPIC SIGNAL M23 BCMS 1MM
Series: EPIC SIGNAL M23
Unit Price (€ / pc.)
0.4998 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
5 pcs.
0.4522 €
10 pcs.
0.4284 €
20 pcs.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale

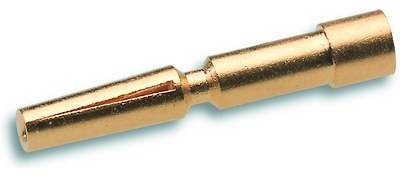

Socket contact, 74200600, LAPP KABEL
Socket contact for circular connectors, 1 mm female slot 0.14 - 1.0 mm², Gold plated.
Features
- Good chemical resistance
- Wide clamping range
- Corrosion-resistant
- Maximum vibration protection
- Mechanical resistance
- Oil-resistant
- Optimum strain relief
- Robust
- Reliability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| AWG cross-section | AWG 26-18 | |
| Version | receptacle | |
| contact surface | gold-plated | |
| Contact material | brass | |
| Cable cross-section | 0.14-1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
