73220218 | LAPP

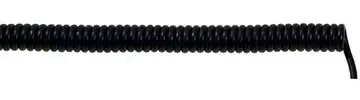

PUR spiral cord UNITRONIC SPIRAL 5 x 0.14 mm², AWG 26, shielded, black, 73220218
Order No.: 32P6094
EAN: 4044773327465
MPN:
73220218
UNITRONIC SPIRAL 5X0,14/400
Series: UNITRONIC SPIRAL
Unit Price (€ / pc.)
59.4524 € *
Standard delivery time from the manufacturer is: On Request
Spiral cable, 73220218, LAPP KABEL
Shielded PUR spiral cable, abrasion-resistant data and control cable for use in data processing, measurement and control engineering.
Features
- Mechanical resistance
- Oil-resistant
- Interference signals
- Abrasion and cut-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 | |
| Number of cores | 5 | |
| Halogen free | No | |
| Conductor category | CL.6 = finest stranded | |
| Drag chain suitable | No | |
| Product type | spiral cord | |
| Material | PUR | |
| Test voltage | 1.2 kV | |
| Shielding | shielded | |
| Temperature range (active) | -5 °C to 50 °C | |
| Cable material | copper, bright | |
| Rated voltage | 250 V | |
| Core insulation material | PVC | |
| Standard number | VDE | |
| Protective conductor available | No | |
| Core colour sequence | DIN 47100 | |
| Colour | black | |
| Cable cross-section | 0.14 mm² | |
| Outer diameter | 20 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444993 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
