7038902 | LAPP

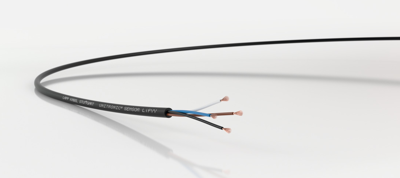

PVC sensor line UNITRONIC SENSOR LifYY 5 x 0.34 mm², unshielded, black, 7038902
Order No.: 33P291
EAN: 4044777597253
MPN:
7038902
UNITRONIC SENSOR LifYY 5x0,34
Series: UNITRONIC SENSOR LifYY
Unit Price (€ / mtr.)
1.5351 € *
Standard delivery time from the manufacturer is: On Request
Sensor cable, 7038902, LAPP
This product is a sensor cable for medium mechanical stress. It is suitable for use in automated production in dry conditions. The cable is intended for fixed installation and conditional flexible use.
Features
- Space-saving due to compact dimensions
- Easy stripping and processing
- Easy installation (through cable trays, tubes, cabinets)
Applications
- Automation technology
- Sensor/ actuator cabling
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Conductor category | CL.6 = finest stranded | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Rated voltage | 300 V | |
| Protective conductor available | No | |
| Material | PVC | |
| Colour | black | |
| Cable cross-section | 0.34 mm² | |
| Core colour sequence | blue/brown/black/white/gray | |
| Number of cores | 5 | |
| Core insulation material | PVC | |
| Halogen free | No | |
| Outer diameter | 4.8 mm | |
| Product type | sensor line | |
| Temperature range (active) | -5 °C to 70 °C | |
| Shielding | unshielded | |
| Test voltage | 2 kV | |
| Cable material | copper, bright | |
| Drag chain suitable | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444993 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
