4533091 | LAPP

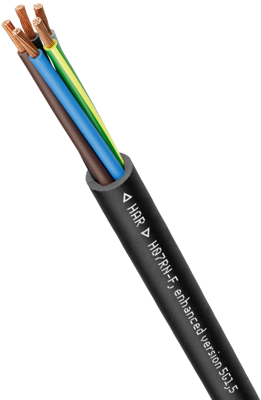

Rubber connection cable H07RN-F, erweiterte Version 5 G 1.0 mm², unshielded, black, 4533091
Order No.: 33P3267
EAN: 4044776709879
MPN:
4533091
H07RN-F, ENHANCED VERSION 5G1
Series: H07RN-F, erweiterte Version
Unit Price (€ / mtr.)
4.1888 € *
Standard delivery time from the manufacturer is: On Request
Power and control cable, 4533091, LAPP
The 4533091 designed for connecting equipment for heavy stress and connecting industrial and agricultural machines where cables underlie medium mechanical stress. and connecting industrial and agricultural machines where cables underlie medium mechanical stress. (e.g. machine tools, hot plates, lamps, electrical tools). In compliance with recommended application acc to. DIN EN 50565-2, H07RN-F, enhanced version is suitable for use in dry, damp or wet rooms as well as outdoors. Fixed installation such as on plaster in provisory buildings and barracks are allowed. Continuous operational movements, restricted guidance, usage of these cables in moving cable carriers or on motor drum guidance or under a strain of more than 15 N/mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | rubber | |
| Temperature range (active) | -40 °C to 90 °C | |
| Test voltage | 2.5 kV | |
| Colour | black | |
| Halogen free | Yes | |
| Number of cores | 5 | |
| Shielding | unshielded | |
| Outer diameter | 13.1 mm | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Material | rubber | |
| Rated voltage U0 | 450 V | |
| Protective conductor available | Yes | |
| Rated voltage | 750 V | |
| Drag chain suitable | No | |
| Product type | connection cable | |
| Cable material | copper, bright | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
