4533000 | LAPP

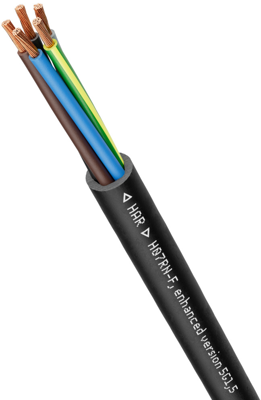

Rubber connection cable H07RN-F, erweiterte Version 1 x 1.5 mm², unshielded, black, 4533000
Order No.: 33P3217
EAN: 4044776708056
MPN:
4533000
H07RN-F, ENHANCED VERSION 1X1,5
Series: H07RN-F, erweiterte Version
Unit Price (€ / mtr.)
1.2257 € *
Standard delivery time from the manufacturer is: 6 Weeks
Power and control cable, 4533000, LAPP
The 4533000 designed for connecting equipment for heavy stress and connecting industrial and agricultural machines where cables underlie medium mechanical stress. and connecting industrial and agricultural machines where cables underlie medium mechanical stress. (e.g. machine tools, hot plates, lamps, electrical tools). In compliance with recommended application acc to. DIN EN 50565-2, H07RN-F, enhanced version is suitable for use in dry, damp or wet rooms as well as outdoors. Fixed installation such as on plaster in provisory buildings and barracks are allowed. Continuous operational movements, restricted guidance, usage of these cables in moving cable carriers or on motor drum guidance or under a strain of more than 15 N/mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Colour | black | |
| Test voltage | 2.5 kV | |
| Cable cross-section | 1.5 mm² | |
| Outer diameter | 7.1 mm | |
| Version | connection line | |
| Rated voltage U0 | 450 V | |
| Material | rubber | |
| Temperature range (active) | -40 °C to 90 °C | |
| Number of cores | 1 | |
| Protective conductor available | No | |
| Rated voltage | 750 V | |
| Temperature range (unmoved) | -50 °C to 90 °C | |
| Shielding | unshielded | |
| Core insulation material | rubber | |
| Conductor category | CL.5 = fine stranded | |
| Drag chain suitable | No | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
