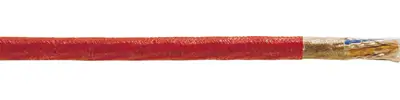

Glass silk connection cable ÖLFLEX HEAT 1565 MC 2 x 0.75 mm², unshielded, red, 30020809
Order No.: 33P2736
EAN: 4044774681269
MPN:
30020809
ÖLFLEX HEAT 1565 MC 2X0,75
Series: ÖLFLEX HEAT 1565 MC
Unit Price (€ / mtr.)
79.9442 € *
Standard delivery time from the manufacturer is: On Request
Glass fibre insulated power cable, 30020809, LAPP
The 30020809 is a glass fibre insulated power cable for use in blast furnaces, glassworks, motor construction. This product ensures the power supply of electric circuits at extremely dangerous locations, e.g. blast furnaces, coke mills, oil refineries, glassworks, aluminium- and steel works etc. The outstanding heat-proved quality and flame resistance guarantee the function even at contact with melted metal or glass for shortterm.
Features
- Halogen-free
- Heat-resistant
- Cold-resistant
- Temperature-resistant
- Only suitable for use in dry conditions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Protective conductor available | No | |
| Core colour sequence | blue/brown | |
| Temperature range (unmoved) | -195 °C to 400 °C | |
| Rated voltage | 500 V | |
| Material | glass silk | |
| Core insulation material | glass silk | |
| Shielding | unshielded | |
| Product type | connection cable | |
| Drag chain suitable | No | |
| Outer diameter | 7.4 mm | |
| Cable cross-section | 0.75 mm² | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, nickel-plated | |
| Number of cores | 2 | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
