30016600 | LAPP
Glass silk connection cable ÖLFLEX HEAT 1565 MC 4 x 1.5 mm², unshielded, red, 30016600
Order No.: 33P2742
EAN: 4044774681115
MPN:
30016600
ÖLFLEX HEAT 1565 MC 4X1,5
Series: ÖLFLEX HEAT 1565 MC
Unit Price (€ / mtr.)
170.4437 € *
Standard delivery time from the manufacturer is: 6 Weeks

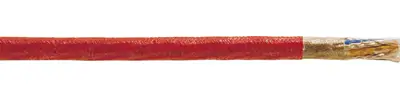

Glass fibre insulated power cable, 30016600, LAPP
The 30016600 is a glass fibre insulated power cable for use in blast furnaces, glassworks, motor construction. This product ensures the power supply of electric circuits at extremely dangerous locations, e.g. blast furnaces, coke mills, oil refineries, glassworks, aluminium- and steel works etc. The outstanding heat-proved quality and flame resistance guarantee the function even at contact with melted metal or glass for shortterm.
Features
- Halogen-free
- Heat-resistant
- Cold-resistant
- Temperature-resistant
- Only suitable for use in dry conditions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Colour | red | |
| Test voltage | 2 kV | |
| Core colour sequence | black/blue/yellow/red | |
| Cable cross-section | 1.5 mm² | |
| Outer diameter | 9.5 mm | |
| Version | connection line | |
| Rated voltage U0 | 300 V | |
| Material | glass silk | |
| Number of cores | 4 | |
| Protective conductor available | No | |
| Rated voltage | 500 V | |
| Temperature range (unmoved) | -195 °C to 400 °C | |
| Shielding | unshielded | |
| Core insulation material | glass silk | |
| Conductor category | CL.5 = fine stranded | |
| Drag chain suitable | No | |
| Cable material | copper, nickel-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
