Polymer control line ÖLFLEX TRAY II CY 25 G 1.0 mm², AWG 18, shielded, black, 2218250/152
Order No.: 33P3390
EAN: 4044774614496
MPN:
2218250/152
ÖLFLEX TRAY II CY 25G1
Series: ÖLFLEX TRAY II CY
Unit Price (€ / mtr.)
40.3767 € *
Standard delivery time from the manufacturer is: On Request
Control cable, 2218250/152, LAPP

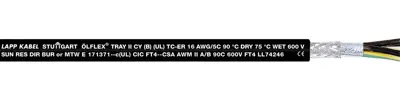

The 2218250/152 is an industrial grade tray cable with superior oil performance for long cable life. It has a pressure extruded jacket and fine copper stranding for excellent flexibility making it easier to pull through Tray. Shielded with overall foil tape and tinned copper braid provides protection against EMI and RFI.No conduit required which provides savings on material costs and labor.
Features
- Suitable for outdoor use
- Flame-retardant
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Torsion-resistant
- UV-resistant
Applications
- Plant and Factory expansions
- Automotive plants
- Tray installations
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Rated voltage UL/CSA | 1000 V | |
| Material | polymer | |
| Protective conductor available | Yes | |
| AWG cross-section | AWG 18 | |
| Rated voltage | 1000 V | |
| Rated voltage U0 | 600 V | |
| Cable material | copper, bright | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 2 kV | |
| Product type | control line | |
| Temperature range (active) | -25 °C to 105 °C | |
| Standard number | cUL, CSA | |
| Number of cores | 25 | |
| Core insulation material | PVC | |
| Shielding | shielded | |
| Halogen free | No | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Colour | black | |
| Outer diameter | 17.7 mm | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
