Polymer control line ÖLFLEX TRAY II CY 18 G 1.0 mm², AWG 18, shielded, black, 2218180/152
Order No.: 33P3387
EAN: 4044774614465
MPN:
2218180/152
ÖLFLEX TRAY II CY 18G1
Series: ÖLFLEX TRAY II CY
Unit Price (€ / mtr.)
33.2129 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

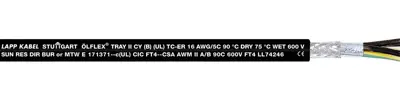

Control cable, 2218180/152, LAPP
The 2218180/152 is an industrial grade tray cable with superior oil performance for long cable life. It has a pressure extruded jacket and fine copper stranding for excellent flexibility making it easier to pull through Tray. Shielded with overall foil tape and tinned copper braid provides protection against EMI and RFI.No conduit required which provides savings on material costs and labor.
Features
- Suitable for outdoor use
- Flame-retardant
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Torsion-resistant
- UV-resistant
Applications
- Plant and Factory expansions
- Automotive plants
- Tray installations
Technical specifications
| Core insulation material | PVC | |
| Colour | black | |
| Number of cores | 18 | |
| Protective conductor available | Yes | |
| Outer diameter | 15.7 mm | |
| Drag chain suitable | No | |
| AWG cross-section | AWG 18 | |
| Test voltage | 2 kV | |
| Rated voltage UL/CSA | 1000 V | |
| Halogen free | No | |
| Cable cross-section | 1.0 mm² | |
| Version | control line | |
| Material | polymer | |
| Cable material | copper, bright | |
| Shielding | shielded | |
| Rated voltage U0 | 600 V | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Temperature range (active) | -25 °C to 105 °C | |
| Conductor category | CL.5 = fine stranded | |
| Standard number | cUL, CSA | |
| Rated voltage | 1000 V |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
