1600820 | LAPP
Rubber connection cable H07ZZ-F 3 G 2.5 mm², unshielded, black, 1600820
Unit Price (€ / mtr.)
4.9742 € *
Available: 0 mtr.
Leadtime: On Request **

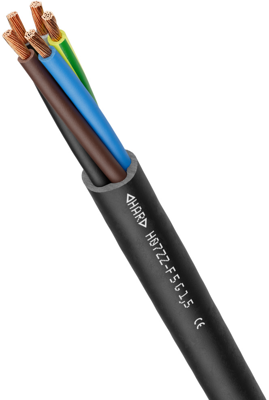

Rubber cable, 1600820, LAPP
The 1600820 is halogen-free, heat-resistant hose cables for heavy stress and especially for applications where low smoke density and low emission of corrosive gases are required at in case of fire. Suitable for connection with equipment and machine tools, where cables for heavy mechanical stress are required.
Applications
- Stage technology
- For mobile equipment and machines
Technical specifications
| Core insulation material | rubber | |
| Colour | black | |
| Number of cores | 3 | |
| Protective conductor available | Yes | |
| Outer diameter | 12.5 mm | |
| Test voltage | 2.5 kV | |
| Halogen free | Yes | |
| Core colour sequence | VDE 0293-308 | |
| Cable cross-section | 2.5 mm² | |
| Version | connection line | |
| Material | rubber | |
| Cable material | copper, bright | |
| Shielding | unshielded | |
| Rated voltage U0 | 450 V | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Temperature range (active) | -5 °C to 90 °C | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 750 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
