1600812 | LAPP

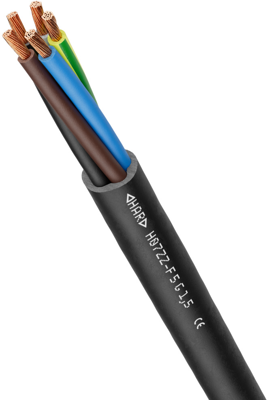

Rubber connection cable H07ZZ-F 5 G 1.5 mm², unshielded, black, 1600812
Unit Price (€ / mtr.)
5.4145 € *
Standard delivery time from the manufacturer is: On Request
Rubber cable, 1600812, LAPP
The 1600812 is halogen-free, heat-resistant hose cables for heavy stress and especially for applications where low smoke density and low emission of corrosive gases are required at in case of fire. Suitable for connection with equipment and machine tools, where cables for heavy mechanical stress are required.
Applications
- Stage technology
- For mobile equipment and machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Protective conductor available | Yes | |
| Core colour sequence | VDE 0293-308 | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Rated voltage | 750 V | |
| Temperature range (active) | -5 °C to 90 °C | |
| Material | rubber | |
| Core insulation material | rubber | |
| Shielding | unshielded | |
| Product type | connection cable | |
| Outer diameter | 12.8 mm | |
| Cable cross-section | 1.5 mm² | |
| Rated voltage U0 | 450 V | |
| Test voltage | 2.5 kV | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Number of cores | 5 | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
