1600811 | LAPP
Rubber connection cable H07ZZ-F 4 G 1.5 mm², unshielded, black, 1600811
Unit Price (€ / mtr.)
5.0813 € *
Standard delivery time from the manufacturer is: On Request

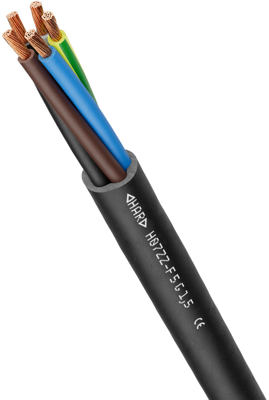

Rubber cable, 1600811, LAPP
The 1600811 is halogen-free, heat-resistant hose cables for heavy stress and especially for applications where low smoke density and low emission of corrosive gases are required at in case of fire. Suitable for connection with equipment and machine tools, where cables for heavy mechanical stress are required.
Applications
- Stage technology
- For mobile equipment and machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | rubber | |
| Temperature range (active) | -5 °C to 90 °C | |
| Test voltage | 2.5 kV | |
| Colour | black | |
| Halogen free | Yes | |
| Number of cores | 4 | |
| Shielding | unshielded | |
| Outer diameter | 11.8 mm | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Material | rubber | |
| Rated voltage U0 | 450 V | |
| Protective conductor available | Yes | |
| Rated voltage | 750 V | |
| Core colour sequence | VDE 0293-308 | |
| Product type | connection cable | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
