1600601/100 | LAPP

Rubber connection and control cable 1 x 6.0 mm², AWG 10, unshielded, black, 1600601/100

Order No.: 30P2639

EAN: 4044774651101

MPN:

1600601/100

H07RN8-F 1X6

Series: H07RN8-F

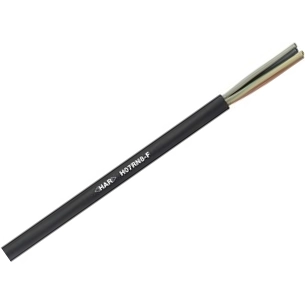

Image may differ

Key Specification:

Product type connection and control cable

Number of cores 1

Cable cross-section 6.0 mm²

AWG cross-section AWG 10

Colour black

Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description

Control cable, 1600601/100, LAPP

H07RN8-F, HAR, power and control cable, rubber, heavy, 450/750V, submersion up to a depth of 10 m, pump cable, class 5, oilresistant, flame-retardant.

FEATURES

Cold-resistant
Mechanical resistance
Oil-resistant
UV-resistant

Technical Data

Cable material: Copper, bright
Core insulation material: Rubber
Color: black
Conductor category: Cl.5 = fine-stranded

Technical specifications

Filter	Property	Value
	Product type	connection and control cable
	Number of cores	1
	Cable cross-section	6.0 mm²
	AWG cross-section	AWG 10
	Colour	black
	Material	rubber
	Outer diameter	9.8 mm
	Shielding	unshielded
	Halogen free	No
	Protective conductor available	No
	Cable material	copper, bright
	Conductor category	CL.5 = fine stranded
	Core insulation material	rubber
	Core colour sequence	VDE 0293-308
	Drag chain suitable	No
	Standard number	VDE
	Rated voltage	750 V
	Rated voltage U0	450 V
	Temperature range (unmoved)	-40 °C to 60 °C
	Temperature range (active)	-25 °C to 60 °C
	Test voltage	2.5 kV
