1600600/100 | LAPP

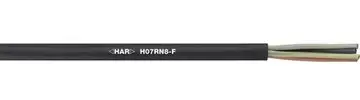

Rubber connection and control cable H07RN8-F 1 x 4.0 mm², AWG 12, unshielded, black, 1600600/100
Unit Price (€ / mtr.)
2.5704 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.57 € *
Price list
Quantity
Price per unit*
1 mtr.
2.5704 €
10 mtr.
2.3324 €
50 mtr.
2.1658 €
100 mtr.
1.9278 €
500 mtr.
1.7374 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cable, 1600600/100, LAPP
H07RN8-F, HAR, power and control cable, rubber, heavy, 450/750V, submersion up to a depth of 10 m, pump cable, class 5, oilresistant, flame-retardant.
FEATURES
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- UV-resistant
Technical Data
- Cable material: Copper, bright
- Core insulation material: Rubber
- Color: black
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 | |
| Core insulation material | rubber | |
| Temperature range (active) | -25 °C to 60 °C | |
| Test voltage | 2.5 kV | |
| Colour | black | |
| Halogen free | No | |
| Number of cores | 1 | |
| Shielding | unshielded | |
| Outer diameter | 9 mm | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -40 °C to 60 °C | |
| Material | rubber | |
| Rated voltage U0 | 450 V | |
| Standard number | VDE | |
| Protective conductor available | No | |
| Rated voltage | 750 V | |
| Drag chain suitable | No | |
| Core colour sequence | VDE 0293-308 | |
| Product type | connection and control cable | |
| Cable material | copper, bright | |
| Cable cross-section | 4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
