1600508 | LAPP
Rubber connection cable NSSHÖU 1 x 185 mm², unshielded, yellow, 1600508
Unit Price (€ / mtr.)
40.9122 € *
Standard delivery time from the manufacturer is: 6 Weeks

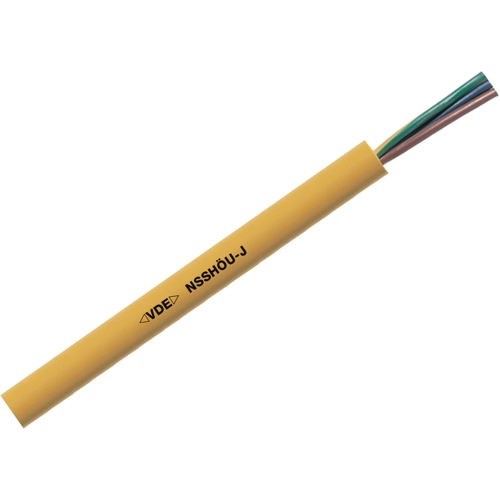

Control cable, 1600508, LAPP
The 1600508 is a rubber cable for use at very high mechanical stress, for mining and surface mining and as well as industry. Suitable for connection of moving equipment and machinery under extreme environmental conditions. Also suitable for fixed installations e.g. on plaster. No direct burial except of lead-through through fire separations such as sand cups.
Features
- Suitable for outdoor use
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- UV-resistant
Applications
- For mining as well as surface mining
- Connection for moving equipment and machinery
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Material | rubber | |
| Protective conductor available | No | |
| Rated voltage | 1000 V | |
| Rated voltage U0 | 600 V | |
| Cable material | copper, tin-plated | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 3 kV | |
| Product type | connection cable | |
| Temperature range (active) | -25 °C to 90 °C | |
| Standard number | VDE | |
| Number of cores | 1 | |
| Core insulation material | rubber | |
| Shielding | unshielded | |
| Halogen free | No | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Colour | yellow | |
| Outer diameter | 28.4 mm | |
| Cable cross-section | 185 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
