1600305 | LAPP

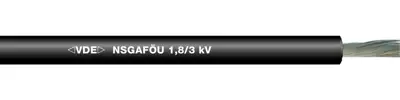

Rubber connection cable NSGAFÖU 1,8/3 kV 1 x 16 mm², unshielded, black, 1600305
Unit Price (€ / mtr.)
4.9028 € *
Available: 10 mtr.
Total Price:
4.90 € *
Price list
Quantity
Price per unit*
1 mtr.
4.9028 €
10 mtr.
4.5220 €
50 mtr.
4.2602 €
100 mtr.
3.9865 €
*incl. VAT plus shipping costs
Subject to prior sale
Connection cable, 1600305, LAPP
The 1600305 is a flexible single-conductor rubber cable for use in railway vehicles and omnibuses as well as in dry interiors. Suitable for use in ducts, tubes, pipes, conduits and closed installation channels. No direct burial, except of lead-through through fire separations such as sand cups.
Features
- Flame-retardant
- Oil-resistant
- Control panel internal wiring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage U0 | 1800 V | |
| Colour | black | |
| Outer diameter | 13 mm | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Number of cores | 1 | |
| Core insulation material | rubber | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Rated voltage | 3 kV | |
| Halogen free | No | |
| Material | rubber | |
| Cable material | copper, tin-plated | |
| Shielding | unshielded | |
| Product type | connection cable | |
| Test voltage | 6 kV | |
| Cable cross-section | 16 mm² | |
| Conductor category | CL.5 = fine stranded | |
| Standard number | VDE | |
| Temperature range (active) | -25 °C to 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85446010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
