1600304 | LAPP

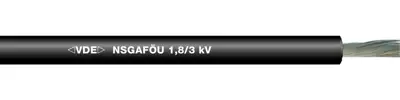

Rubber connection cable NSGAFÖU 1,8/3 kV 1 x 10 mm², unshielded, black, 1600304
Unit Price (€ / mtr.)
3.4034 € *
Available: 43 mtr.
Total Price:
3.40 € *
Price list
Quantity
Price per unit*
1 mtr.
3.4034 €
10 mtr.
3.1416 €
50 mtr.
2.9393 €
100 mtr.
2.7608 €
*incl. VAT plus shipping costs
Subject to prior sale
Connection cable, 1600304, LAPP
The 1600304 is a flexible single-conductor rubber cable for use in railway vehicles and omnibuses as well as in dry interiors. Suitable for use in ducts, tubes, pipes, conduits and closed installation channels. No direct burial, except of lead-through through fire separations such as sand cups.
Features
- Flame-retardant
- Oil-resistant
- Control panel internal wiring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 11 mm | |
| Rated voltage U0 | 1800 V | |
| Test voltage | 6 kV | |
| Rated voltage | 3 kV | |
| Core insulation material | rubber | |
| Halogen free | No | |
| Cable cross-section | 10 mm² | |
| Cable material | copper, tin-plated | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Standard number | VDE | |
| Conductor category | CL.5 = fine stranded | |
| Shielding | unshielded | |
| Drag chain suitable | No | |
| Colour | black | |
| Material | rubber | |
| Product type | connection cable | |
| Number of cores | 1 | |
| Protective conductor available | No | |
| Temperature range (active) | -25 °C to 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446010 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
