1600303 | LAPP

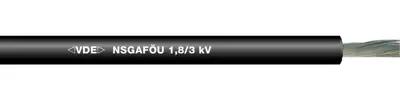

Rubber connection cable NSGAFÖU 1,8/3 kV 1 x 6.0 mm², unshielded, black, 1600303
Unit Price (€ / mtr.)
2.2015 € *
Available: 28 mtr.
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
1 mtr.
2.2015 €
10 mtr.
2.0349 €
50 mtr.
1.9159 €
100 mtr.
1.7731 €
*incl. VAT plus shipping costs
Subject to prior sale
Connection cable, 1600303, LAPP
The 1600303 is a flexible single-conductor rubber cable for use in railway vehicles and omnibuses as well as in dry interiors. Suitable for use in ducts, tubes, pipes, conduits and closed installation channels. No direct burial, except of lead-through through fire separations such as sand cups.
Features
- Flame-retardant
- Oil-resistant
- Control panel internal wiring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Colour | black | |
| Test voltage | 6 kV | |
| Cable cross-section | 6.0 mm² | |
| Outer diameter | 9.5 mm | |
| Version | connection line | |
| Rated voltage U0 | 1800 V | |
| Material | rubber | |
| Temperature range (active) | -25 °C to 80 °C | |
| Number of cores | 1 | |
| Standard number | VDE | |
| Protective conductor available | No | |
| Rated voltage | 3 kV | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Shielding | unshielded | |
| Core insulation material | rubber | |
| Conductor category | CL.5 = fine stranded | |
| Drag chain suitable | No | |
| Cable material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446010 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
