1600301 | LAPP

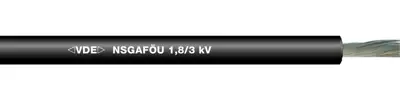

Rubber connection cable NSGAFÖU 1,8/3 kV 1 x 2.5 mm², unshielded, black, 1600301
Unit Price (€ / mtr.)
1.2495 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
1 mtr.
1.2495 €
10 mtr.
1.1543 €
50 mtr.
1.0829 €
100 mtr.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale
Connection cable, 1600301, LAPP
The 1600301 is a flexible single-conductor rubber cable for use in railway vehicles and omnibuses as well as in dry interiors. Suitable for use in ducts, tubes, pipes, conduits and closed installation channels. No direct burial, except of lead-through through fire separations such as sand cups.
Features
- Flame-retardant
- Oil-resistant
- Control panel internal wiring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shielding | unshielded | |
| Halogen free | No | |
| Product type | connection cable | |
| Number of cores | 1 | |
| Core insulation material | rubber | |
| Rated voltage U0 | 1800 V | |
| Material | rubber | |
| Outer diameter | 7.5 mm | |
| Colour | black | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Rated voltage | 3 kV | |
| Temperature range (active) | -25 °C to 80 °C | |
| Test voltage | 6 kV | |
| Protective conductor available | No | |
| Standard number | VDE | |
| Drag chain suitable | No | |
| Cable cross-section | 2.5 mm² | |
| Temperature range (unmoved) | -40 °C to 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446010 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
