1600300 | LAPP

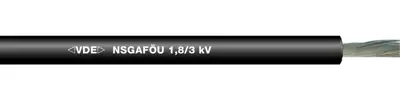

Rubber connection cable NSGAFÖU 1,8/3 kV 1 x 1.5 mm², unshielded, black, 1600300
Unit Price (€ / mtr.)
0.9401 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 mtr.
0.9401 €
10 mtr.
0.8687 €
50 mtr.
0.8211 €
100 mtr.
0.7735 €
*incl. VAT plus shipping costs
Subject to prior sale
Connection cable, 1600300, LAPP
The 1600300 is a flexible single-conductor rubber cable for use in railway vehicles and omnibuses as well as in dry interiors. Suitable for use in ducts, tubes, pipes, conduits and closed installation channels. No direct burial, except of lead-through through fire separations such as sand cups.
Features
- Flame-retardant
- Oil-resistant
- Control panel internal wiring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | rubber | |
| Cable material | copper, tin-plated | |
| Version | connection line | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 1 | |
| Shielding | unshielded | |
| Core insulation material | rubber | |
| Test voltage | 6 kV | |
| Cable cross-section | 1.5 mm² | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Temperature range (active) | -25 °C to 80 °C | |
| Standard number | VDE | |
| Rated voltage U0 | 1800 V | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Outer diameter | 7 mm | |
| Colour | black | |
| Rated voltage | 3 kV | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446010 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
