1600251/100 | LAPP

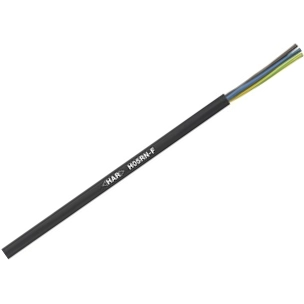

Rubber connection and control cable H05RN-F 2 x 1.0 mm², AWG 18, unshielded, black, 1600251/100
Unit Price (€ / mtr.)
1.8088 € *
Available: 25 mtr.
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 mtr.
1.8088 €
10 mtr.
1.5589 €
50 mtr.
1.4042 €
100 mtr.
1.2971 €
500 mtr.
1.2019 €
*incl. VAT plus shipping costs
Subject to prior sale
Power and control cable, 1600251/100, LAPP
H05RN-F, HAR, power and control cable, rubber, 300/500V, class 5/flexible -25°C to +60°C, light mechanical stress, oilresistant, flame-retardant.
FEATURES
- Cold-resistant
- Oil-resistant
- UV-resistant
- Flame-retardant
Technical Data
- Cable material: Copper, bright
- Core insulation material: Rubber
- Color: black
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, bright | |
| Test voltage | 2 kV | |
| Conductor category | CL.5 = fine stranded | |
| Core insulation material | rubber | |
| Material | rubber | |
| Version | connection and control cable | |
| Temperature range (unmoved) | -25 °C to 60 °C | |
| Temperature range (active) | -25 °C to 60 °C | |
| Core colour sequence | VDE 0293-308 | |
| Rated voltage U0 | 300 V | |
| Halogen free | No | |
| Protective conductor available | No | |
| Outer diameter | 8 mm | |
| AWG cross-section | AWG 18 | |
| Drag chain suitable | No | |
| Colour | black | |
| Number of cores | 2 | |
| Rated voltage | 500 V | |
| Shielding | unshielded | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
