Name: PVC control line ÖLFLEX 195 CY 12 G 1.0 mm², AWG 18, shielded, gray, 1146106
Brand: LAPP
SKU: 95F9545
Availability: InStock

PVC control line ÖLFLEX 195 CY 12 G 1.0 mm², AWG 18, shielded, gray, 1146106

Order No.: 95F9545

EAN: 4064728293027

MPN:

1146106

ÖLFLEX 195 CY 12G1

Series: ÖLFLEX 195 CY

Unit Price (€ / mtr.)

8.2705 € *

Standard delivery time from the manufacturer is: 4 Weeks

Total Price:

620.29 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

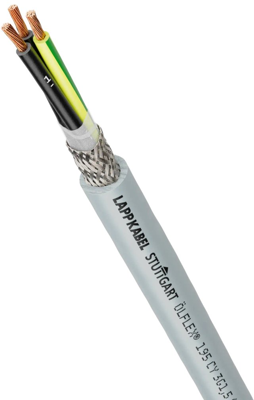

Control cable, 1146106, LAPP

This control cable offers ideal protection against electromagnetic interference thanks to copper screening braiding with a high degree of coverage. No inner sheath results in lower weight and smaller outer diameters.

Features

Space-saving due to reduced wall thicknesses
Optimised cost-effectiveness due to material savings
High oil resistance according to DIN EN 50363-4-1 (TM5)
High electrical safety thanks to 4000 V test voltage
The PVC outer sheath is resistant to acids and alkalis

Applications

For universal use for wiring machine-internal and cross-plant control circuits
For use with metric SKINTOP/SKINDICHT cable glands
For fixed installation and occasional flexing without tensile strain
Suitable for medium mechanical stress
Suitable for outdoor use, subject to the temperature range and only if protected against direct sunlight

Technical specifications

Filter	Property	Value
	Product type	control line
	Number of cores	12
	Cable cross-section	1.0 mm²
	AWG cross-section	AWG 18
	Colour	gray
	Material	PVC
	Outer diameter	12.5 mm
	Shielding	shielded
	Halogen free	No
	Protective conductor available	Yes
	Cable material	copper, bright
	Conductor category	CL.5 = fine stranded
	Core insulation material	PVC
	Core colour sequence	VDE 0293-1
	Drag chain suitable	No
	Standard number	UL, CSA
	Rated voltage	500 V
	Rated voltage U0	300 V
	Rated voltage UL/CSA	600 V
	Temperature range (unmoved)	-40 °C to 70 °C
	Temperature range (active)	-5 °C to 70 °C
	Test voltage	4 kV
