1120469/100 | LAPP

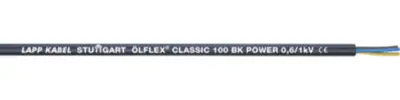

PVC connection and control cable ÖLFLEX CLASSIC 100 BK 0,6/1 kV 3 G 2.5 mm², AWG 14, unshielded, black, 1120469/100
Order No.: 30P9501
EAN: 4044774561028
MPN:
1120469/100
ÖLFLEX CLASSIC 100 BK 3G2,5
Series: ÖLFLEX CLASSIC 100 BK 0,6/1 kV
Unit Price (€ / mtr.)
4.8195 € *
Standard delivery time from the manufacturer is: On Request
PVC Control cable, 1120469/100, LAPP
ÖLFLEX® CLASSIC 100 - flexible PVC cable, colour coded, control cable for various applications, 300/500V, also for YSLY or YY.
FEATURES
- Good chemical resistance
- Torsion-resistant
- Flame-retardant
- Space saving installation
Technical Data
- Cable material: Copper, bright
- Core insulation material: PVC
- Color: black
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 14 | |
| Colour | black | |
| Core colour sequence | VDE 0293-308 | |
| Core insulation material | PVC | |
| Temperature range (active) | -30 °C to 70 °C | |
| Drag chain suitable | No | |
| Rated voltage | 1 kV | |
| Halogen free | No | |
| Cable cross-section | 2.5 mm² | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Number of cores | 3 | |
| Outer diameter | 11.3 mm | |
| Material | PVC | |
| Test voltage | 4 kV | |
| Product type | connection and control cable | |
| Protective conductor available | Yes | |
| Rated voltage U0 | 600 V | |
| Cable material | copper, bright | |
| Shielding | unshielded | |
| Conductor category | CL.5 = fine stranded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
