11101309 | LAPP

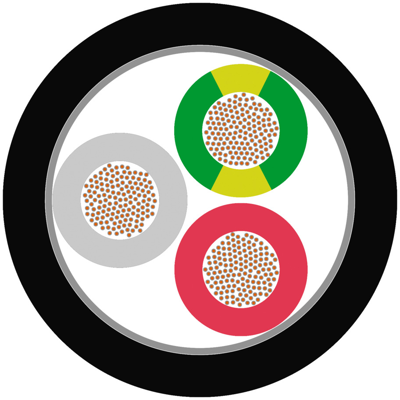

TPE DC connection cable ÖLFLEX DC CHAIN 800 3 G 0.75 mm², unshielded, black, 11101309
Order No.: 33P3413
EAN: 4056156353305
MPN:
11101309
ÖLFLEX DC CHAIN 800 3G0,75
Series: ÖLFLEX DC CHAIN 800
Unit Price (€ / mtr.)
5.831 € *
Standard delivery time from the manufacturer is: On Request
DC power and control cable, 11101309, LAPP
The 11101309 is a high flexible power cable for flexible use and fixed installation medium mechanical load conditions. This product is suitable for use in dry, damp or wet areas. At room temperature, it is largely resistant to the effects of acids, alkalis and oils, as well as greases and plant-, animal-, mineral- or syntheticbased waxes.
Features
- Suitable for outdoor use
- Halogen-free
- Cold-resistant
- Oil-resistant
- Power chain
- UV-resistant
Applications
- DC applications in the low-voltage range
- Machine tool building
- Medical technology
- Food and beverage industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | Yes | |
| Material | TPE | |
| Protective conductor available | Yes | |
| Rated voltage | 1.5 kV | |
| Core colour sequence | red/white/green-yellow | |
| Rated voltage U0 | 750 V | |
| Cable material | copper, tin-plated | |
| Conductor category | CL.6 = finest stranded | |
| Test voltage | 4 kV | |
| Product type | DC connection cable | |
| Temperature range (active) | -40 °C to 105 °C | |
| Number of cores | 3 | |
| Core insulation material | TPE | |
| Shielding | unshielded | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -50 °C to 105 °C | |
| Colour | black | |
| Outer diameter | 7.7 mm | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
