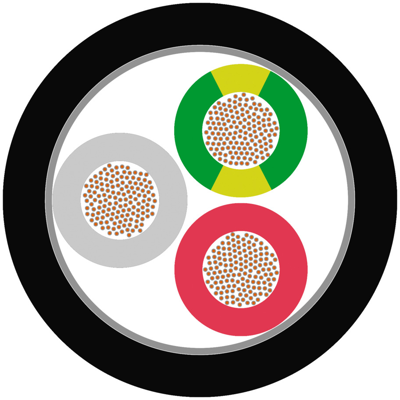

TPE DC connection cable ÖLFLEX DC CHAIN 800 3 G 1.5 mm², unshielded, black, 11101301
Order No.: 33P3415
EAN: 4056156353138
MPN:
11101301
ÖLFLEX DC CHAIN 800 3G1,5
Series: ÖLFLEX DC CHAIN 800
Unit Price (€ / mtr.)
7.5446 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
DC power and control cable, 11101301, LAPP
The 11101301 is a high flexible power cable for flexible use and fixed installation medium mechanical load conditions. This product is suitable for use in dry, damp or wet areas. At room temperature, it is largely resistant to the effects of acids, alkalis and oils, as well as greases and plant-, animal-, mineral- or syntheticbased waxes.
Features
- Suitable for outdoor use
- Halogen-free
- Cold-resistant
- Oil-resistant
- Power chain
- UV-resistant
Applications
- DC applications in the low-voltage range
- Machine tool building
- Medical technology
- Food and beverage industry
Technical specifications
| Core insulation material | TPE | |
| Colour | black | |
| Number of cores | 3 | |
| Protective conductor available | Yes | |
| Outer diameter | 9.1 mm | |
| Drag chain suitable | Yes | |
| Test voltage | 4 kV | |
| Halogen free | Yes | |
| Core colour sequence | red/white/green-yellow | |
| Cable cross-section | 1.5 mm² | |
| Version | connection line | |
| Material | TPE | |
| Cable material | copper, tin-plated | |
| Shielding | unshielded | |
| Rated voltage U0 | 750 V | |
| Temperature range (unmoved) | -50 °C to 105 °C | |
| Temperature range (active) | -40 °C to 105 °C | |
| Conductor category | CL.6 = finest stranded | |
| Rated voltage | 1.5 kV |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
