11101113 | LAPP

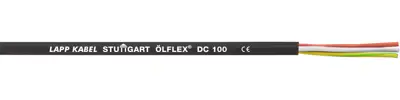

PVC connection cable ÖLFLEX DC 100 3 G 25 mm², unshielded, black, 11101113
Unit Price (€ / mtr.)
42.3640 € *
Standard delivery time from the manufacturer is: On Request
DC connection cable, 11101113, LAPP
The 11101113 is a colour-coded cable for occasional flexible use and fixed installation subject to medium mechanical load conditions and for the power supply of plants with DC grids. This product is designed for use in dry, damp and wet areas, also suitable for occasional, non automated movements. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.
Features
- Suitable for outdoor use
- UV-resistant
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Test voltage | 4 kV | |
| Colour | black | |
| Halogen free | No | |
| Number of cores | 3 | |
| Shielding | unshielded | |
| Outer diameter | 23 mm | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Material | PVC | |
| Rated voltage U0 | 750 V | |
| Protective conductor available | Yes | |
| Rated voltage | 1.5 kV | |
| Drag chain suitable | No | |
| Core colour sequence | red/white/green-yellow | |
| Product type | connection cable | |
| Cable material | copper, bright | |
| Cable cross-section | 25 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
