11101108 | LAPP

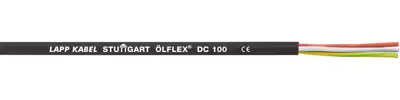

PVC connection cable ÖLFLEX DC 100 3 G 4.0 mm², unshielded, black, 11101108
Unit Price (€ / mtr.)
3.7723 € *
Standard delivery time from the manufacturer is: On Request
DC connection cable, 11101108, LAPP
The 11101108 is a colour-coded cable for occasional flexible use and fixed installation subject to medium mechanical load conditions and for the power supply of plants with DC grids. This product is designed for use in dry, damp and wet areas, also suitable for occasional, non automated movements. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.
Features
- Suitable for outdoor use
- UV-resistant
- Flame-retardant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Shielding | unshielded | |
| Cable material | copper, bright | |
| Colour | black | |
| Drag chain suitable | No | |
| Cable cross-section | 4.0 mm² | |
| Temperature range (active) | -5 °C to 70 °C | |
| Core colour sequence | red/white/green-yellow | |
| Rated voltage U0 | 750 V | |
| Material | PVC | |
| Halogen free | No | |
| Rated voltage | 1.5 kV | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 4 kV | |
| Outer diameter | 11.4 mm | |
| Number of cores | 3 | |
| Product type | connection cable | |
| Protective conductor available | Yes | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
