1062945 | LAPP

PVC control line 1 x 50 mm², AWG 1, black, 1062945

Order No.: 33P192

EAN: 4044777044139

MPN:

1062945

ÖLFLEX CHAIN 809 SC CY 1X50

Series: ÖLFLEX CHAIN 809 SC

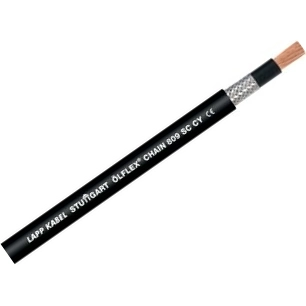

Image may differ

Key Specification:

Product type control line

Number of cores 1

Cable cross-section 50 mm²

AWG cross-section AWG 1

Colour black

Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description

Single core cable, 1062945, LAPP

This product is high-flexible PVC single-core cable for flexible use and fixed installation under light or medium mechanical load conditions. It is suitable for outdoor use if the indicated temperature range is observed and it is resistant to acids, alkalis and certain oils at room temperature. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.

Features

Oil-resistant
Low-adhesive surface
Torsion-resistant
Power chain
UV-resistant

Applications

In power chains or moving machine parts
For internal wiring of electric and electronic equipment in switch cabinets
Specially designed for power circuits of servomotors driven by frequency converters
Automotive industry, vehicles and stationary fuel cell systems

Technical specifications

Filter	Property	Value
	Product type	control line
	Number of cores	1
	Cable cross-section	50 mm²
	AWG cross-section	AWG 1
	Colour	black
	Material	PVC
	Outer diameter	16.8 mm
	Halogen free	No
	Protective conductor available	No
	Cable material	copper, bright
	Conductor category	CL.5 = fine stranded
	Core insulation material	PVC
	Drag chain suitable	Yes
	Standard number	UL
	Rated voltage	1 kV
	Rated voltage U0	600 V
	Rated voltage UL/CSA	600 V
	Temperature range (unmoved)	-40 °C to 80 °C
	Temperature range (active)	-0 °C to 70 °C
	Test voltage	4 kV
