1062941 | LAPP

Name: PVC control line ÖLFLEX CHAIN 809 SC 1 x 10 mm², AWG 8, black, 1062941
Brand: LAPP
SKU: 33P188
Availability: InStock

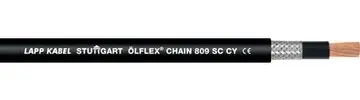

PVC control line ÖLFLEX CHAIN 809 SC 1 x 10 mm², AWG 8, black, 1062941

Order No.: 33P188

EAN: 4044777044016

MPN:

1062941

ÖLFLEX CHAIN 809 SC CY 1X10

Series: ÖLFLEX CHAIN 809 SC

Unit Price (€ / mtr.)

5.3312 € *

Standard delivery time from the manufacturer is: On Request

Total Price:

533.12 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Single core cable, 1062941, LAPP

This product is high-flexible PVC single-core cable for flexible use and fixed installation under light or medium mechanical load conditions. It is suitable for outdoor use if the indicated temperature range is observed and it is resistant to acids, alkalis and certain oils at room temperature. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.

Features

Oil-resistant
Low-adhesive surface
Torsion-resistant
Power chain
UV-resistant

Applications

In power chains or moving machine parts
For internal wiring of electric and electronic equipment in switch cabinets
Specially designed for power circuits of servomotors driven by frequency converters
Automotive industry, vehicles and stationary fuel cell systems

Technical specifications

Filter	Property	Value
	Drag chain suitable	Yes
	Rated voltage UL/CSA	600 V
	Material	PVC
	Protective conductor available	No
	AWG cross-section	AWG 8
	Rated voltage	1 kV
	Rated voltage U0	600 V
	Cable material	copper, bright
	Conductor category	CL.5 = fine stranded
	Test voltage	4 kV
	Product type	control line
	Temperature range (active)	-0 °C to 70 °C
	Standard number	UL
	Number of cores	1
	Core insulation material	PVC
	Halogen free	No
	Temperature range (unmoved)	-40 °C to 80 °C
	Colour	black
	Outer diameter	9.7 mm
	Cable cross-section	10 mm²
