1062909 | LAPP

Name: PVC control line ÖLFLEX CHAIN 809 SC 1 x 35 mm², AWG 2, black, 1062909
Brand: LAPP
SKU: 33P174
Availability: InStock

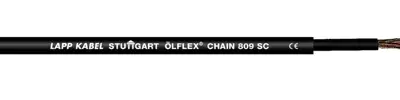

PVC control line ÖLFLEX CHAIN 809 SC 1 x 35 mm², AWG 2, black, 1062909

Order No.: 33P174

EAN: 4064728765173

MPN:

1062909

ÖLFLEX CHAIN 809 SC 1X35

Series: ÖLFLEX CHAIN 809 SC

Unit Price (€ / mtr.)

19.8849 € *

Standard delivery time from the manufacturer is: On Request

Total Price:

19,884.90 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Single core cable, 1062909, LAPP

This product is high-flexible PVC single-core cable for flexible use and fixed installation under light or medium mechanical load conditions. It is suitable for outdoor use if the indicated temperature range is observed and it is resistant to acids, alkalis and certain oils at room temperature. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.

Features

Oil-resistant
Low-adhesive surface
Torsion-resistant
Power chain
UV-resistant

Applications

In power chains or moving machine parts
For internal wiring of electric and electronic equipment in switch cabinets
Specially designed for power circuits of servomotors driven by frequency converters
Automotive industry, vehicles and stationary fuel cell systems

Technical specifications

Filter	Property	Value
	Colour	black
	Protective conductor available	No
	Core colour sequence	black
	Temperature range (unmoved)	-40 °C to 80 °C
	Rated voltage	1 kV
	Standard number	UL
	AWG cross-section	AWG 2
	Temperature range (active)	-0 °C to 70 °C
	Material	PVC
	Core insulation material	PVC
	Product type	control line
	Drag chain suitable	Yes
	Outer diameter	13.1 mm
	Rated voltage UL/CSA	600 V
	Cable cross-section	35 mm²
	Rated voltage U0	600 V
	Test voltage	4 kV
	Conductor category	CL.5 = fine stranded
	Cable material	copper, bright
	Number of cores	1
	Halogen free	No
