1062905 | LAPP

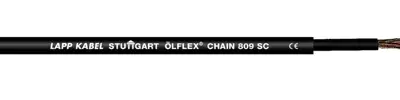

PVC control line ÖLFLEX CHAIN 809 SC 1 x 16 mm², AWG 6, black, 1062905
Order No.: 33P172
EAN: 4044776751304
MPN:
1062905
ÖLFLEX CHAIN 809 SC 1X16
Series: ÖLFLEX CHAIN 809 SC
Unit Price (€ / mtr.)
6.3189 € *
Standard delivery time from the manufacturer is: 6 Weeks
Single core cable, 1062905, LAPP
This product is high-flexible PVC single-core cable for flexible use and fixed installation under light or medium mechanical load conditions. It is suitable for outdoor use if the indicated temperature range is observed and it is resistant to acids, alkalis and certain oils at room temperature. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.
Features
- Oil-resistant
- Low-adhesive surface
- Torsion-resistant
- Power chain
- UV-resistant
Applications
- In power chains or moving machine parts
- For internal wiring of electric and electronic equipment in switch cabinets
- Specially designed for power circuits of servomotors driven by frequency converters
- Automotive industry, vehicles and stationary fuel cell systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 600 V | |
| Halogen free | No | |
| Colour | black | |
| Test voltage | 4 kV | |
| Core colour sequence | black | |
| Cable cross-section | 16 mm² | |
| Outer diameter | 9.9 mm | |
| Version | control line | |
| Rated voltage U0 | 600 V | |
| Material | PVC | |
| Temperature range (active) | -0 °C to 70 °C | |
| AWG cross-section | AWG 6 | |
| Number of cores | 1 | |
| Standard number | UL | |
| Protective conductor available | No | |
| Rated voltage | 1 kV | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Core insulation material | PVC | |
| Conductor category | CL.5 = fine stranded | |
| Drag chain suitable | Yes | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
