1024362 | LAPP

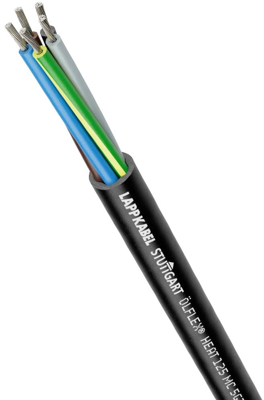

PE copolymer connection cable ÖLFLEX HEAT 125 MC 300/500 V 3 x 0.75 mm², unshielded, black, 1024362
Order No.: 33P7573
EAN: 4064727530406
MPN:
1024362
ÖLFLEX HEAT 125 MC 300/500V 3X0,75
Series: ÖLFLEX HEAT 125 MC 300/500 V
Unit Price (€ / mtr.)
4.3554 € *
Standard delivery time from the manufacturer is: 6 Weeks
Connection cable, 1024362, LAPP
The 1024362 is a heat resistant, highly flame retardant, multi core cable with a cross-linked polyolefin copolymer compound for occasional flexible use and fixed installation subject to medium mechanical load conditions. This cable is halogen-free, and with low toxicity and smoke density in case of fire. It is possible to use the cables where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- No corrosive gases
- Low smoke density
- Cold-resistant
- Oil-resistant
- Mechanical resistance
- Temperature-resistant
- UV-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core colour sequence | VDE 0293-308 | |
| Rated voltage U0 | 300 V | |
| Colour | black | |
| Outer diameter | 6.8 mm | |
| Drag chain suitable | No | |
| Protective conductor available | No | |
| Number of cores | 3 | |
| Core insulation material | polyolefin copolymer | |
| Temperature range (unmoved) | -55 °C to 125 °C | |
| Rated voltage | 500 V | |
| Halogen free | Yes | |
| Material | PE copolymer | |
| Cable material | copper, tin-plated | |
| Shielding | unshielded | |
| Product type | connection cable | |
| Test voltage | 4 kV | |
| Cable cross-section | 0.75 mm² | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (active) | -35 °C to 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
