0091392 | LAPP

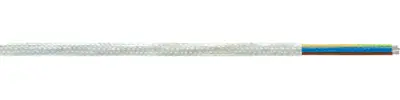

Glass silk connection cable ÖLFLEX HEAT 350 MC 5 G 2.5 mm², unshielded, white, 0091392
Order No.: 33P2752
EAN: 4044774674018
MPN:
0091392
ÖLFLEX HEAT 350 MC 5G2,5
Series: ÖLFLEX HEAT 350 MC
Unit Price (€ / mtr.)
68.2703 € *
Standard delivery time from the manufacturer is: On Request
Glass fibre insulated power cable, 0091392, LAPP
The 0091392 is suitable for fixed installation and wiring of electrical cabinets, motors and within machines, lightings and appliances at expanded ambient temperatures up to +350°C. This product protects electric circuits at extreme locations, e.g. blast furnances, coke mills, oit refineries, glassworks, aluminium-and steel works etc.
Features
- Halogen-free
- Heat-resistant
- Cold-resistant
- Temperature-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | glass silk | |
| Test voltage | 1.5 kV | |
| Colour | white | |
| Halogen free | Yes | |
| Number of cores | 5 | |
| Shielding | unshielded | |
| Outer diameter | 10.1 mm | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -50 °C to 350 °C | |
| Material | glass silk | |
| Rated voltage U0 | 230 V | |
| Protective conductor available | Yes | |
| Rated voltage | 400 V | |
| Drag chain suitable | No | |
| Core colour sequence | VDE 0293-308 | |
| Product type | connection cable | |
| Cable material | copper, nickel-plated | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
