0091376 | LAPP

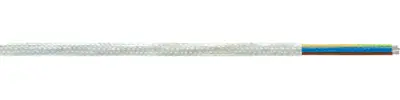

Glass silk connection cable ÖLFLEX HEAT 350 MC 3 G 1.0 mm², unshielded, white, 0091376
Order No.: 33P2745
EAN: 4044774673776
MPN:
0091376
ÖLFLEX HEAT 350 MC 3G1
Series: ÖLFLEX HEAT 350 MC
Unit Price (€ / mtr.)
33.6294 € *
Standard delivery time from the manufacturer is: On Request
Glass fibre insulated power cable, 0091376, LAPP
The 0091376 is suitable for fixed installation and wiring of electrical cabinets, motors and within machines, lightings and appliances at expanded ambient temperatures up to +350°C. This product protects electric circuits at extreme locations, e.g. blast furnances, coke mills, oit refineries, glassworks, aluminium-and steel works etc.
Features
- Halogen-free
- Heat-resistant
- Cold-resistant
- Temperature-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | white | |
| Protective conductor available | Yes | |
| Core colour sequence | VDE 0293-308 | |
| Temperature range (unmoved) | -50 °C to 350 °C | |
| Rated voltage | 400 V | |
| Material | glass silk | |
| Core insulation material | glass silk | |
| Shielding | unshielded | |
| Product type | connection cable | |
| Drag chain suitable | No | |
| Outer diameter | 7.4 mm | |
| Cable cross-section | 1.0 mm² | |
| Rated voltage U0 | 230 V | |
| Test voltage | 1.5 kV | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, nickel-plated | |
| Number of cores | 3 | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
