0046633/100 | LAPP

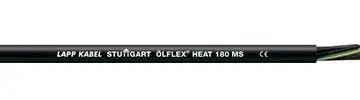

Silicone connection and control cable ÖLFLEX HEAT 180 MS 3 G 4.0 mm², AWG 12, unshielded, black, 0046633/100
Order No.: 31P7797
EAN: 4044774671314
MPN:
0046633/100
ÖLFLEX HEAT 180 MS 3G4
Series: ÖLFLEX HEAT 180 MS
Unit Price (€ / mtr.)
17.1717 € *
Standard delivery time from the manufacturer is: On Request
Silicone control cable, 0046633/100, LAPP KABEL
Silicone power and control cable, approved for machine and plant construction in North America.
Features
- Temperature-resistant
- UV-resistant
- Cold-resistant
- Halogen-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 | |
| Core insulation material | silicone | |
| Test voltage | 2 kV | |
| Colour | black | |
| Halogen free | Yes | |
| Number of cores | 3 | |
| Shielding | unshielded | |
| Outer diameter | 11.5 mm | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Rated voltage UL/CSA | 600 V | |
| Material | silicone | |
| Rated voltage U0 | 300 V | |
| Standard number | UL, cUL | |
| Protective conductor available | Yes | |
| Rated voltage | 500 V | |
| Drag chain suitable | No | |
| Core colour sequence | VDE 0293-308 | |
| Product type | connection and control cable | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
