0041062 | LAPP

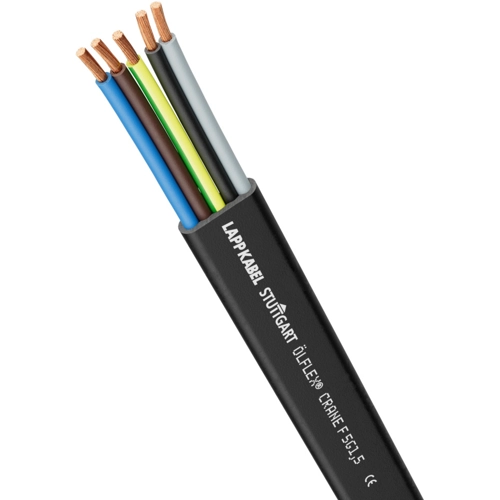

Rubber ribbon cable ÖLFLEX CRANE F 4 G 50 mm², unshielded, black, 0041062
Unit Price (€ / mtr.)
128.7699 € *
Standard delivery time from the manufacturer is: 6 Weeks
Control line, 0041062, LAPP
This 0041062 is weatherproof connecting cables for use in the harshest environmental conditions. Among other things, they are suitable for use in dry, damp or wet rooms. If the specified temperature range is observed, outdoor use is possible.
Features
- Flame-retardant
- Weather-resistant for harsh environmental conditions
- Flat cables need less space than round cables
Applications
- As a lift control cable: max. 50 m suspension length
- In crane systems on building sites and shipyards for fixed installation, or for flexible use in cable trolley systems
- Sewage treatment plants, steelworks and high rack facilities
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Drag chain suitable | No | |
| Material | rubber | |
| Protective conductor available | Yes | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Cable material | copper, bright | |
| Conductor category | CL.5 = fine stranded | |
| Test voltage | 3 kV | |
| Product type | ribbon cable | |
| Temperature range (active) | -25 °C to 90 °C | |
| Standard number | VDE | |
| Number of cores | 4 | |
| Core insulation material | rubber | |
| Shielding | unshielded | |
| Halogen free | No | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Colour | black | |
| Cable cross-section | 50 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
