0026626 | LAPP

PVC control line 1 x 150 mm², black, 0026626

Order No.: 33P160

EAN: 4044774629032

MPN:

0026626

ÖLFLEX FD 90 1X150

Series: ÖLFLEX FD 90

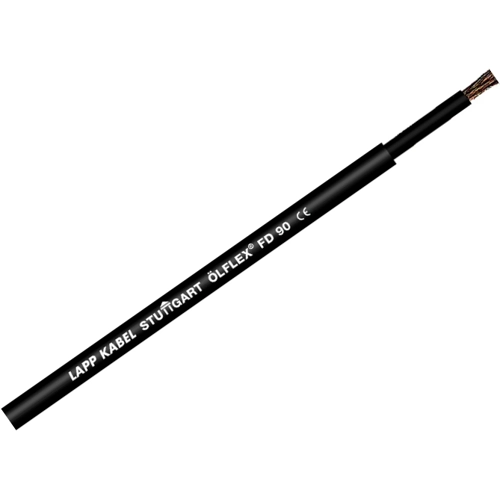

Image may differ

Key Specification:

Product type control line

Number of cores 1

Cable cross-section 150 mm²

Colour black

Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description

Single core cable, 0026626, LAPP

This product is designed for flexible use as well as for fixed installation subject to medium mechanical load conditions. It is also suitable for use in dry, damp or wet areas. The single core cable increased resistant to oils and at room temperature largely resistant to acids and alkalis. It is suitable for linear, automated movements. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.

Features

Flame-retardant
High oil-resistance
Low-adhesive surface
Power chain
UV-resistant

Applications

In power chains or moving machine parts
For internal wiring of electric and electronic equipment in switch cabinets
Specially designed for power circuits of servomotors driven by frequency converters
Automotive industry, vehicles and stationary fuel cell systems

Technical specifications

Filter	Property	Value
	Product type	control line
	Number of cores	1
	Cable cross-section	150 mm²
	Colour	black
	Material	PVC
	Outer diameter	25.1 mm
	Halogen free	No
	Protective conductor available	No
	Cable material	copper, bright
	Conductor category	CL.6 = finest stranded
	Core insulation material	PVC
	Core colour sequence	black
	Drag chain suitable	Yes
	Standard number	UL, CSA
	Rated voltage	1 kV
	Rated voltage U0	600 V
	Rated voltage UL/CSA	600 V
	Temperature range (unmoved)	-40 °C to 80 °C
	Temperature range (active)	-5 °C to 70 °C
	Test voltage	4 kV
