0026614 | LAPP
PVC control line ÖLFLEX FD 90 1 x 50 mm², AWG 1, black, 0026614
Unit Price (€ / mtr.)
30.2855 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
15,142.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 mtr.
30.2855 €

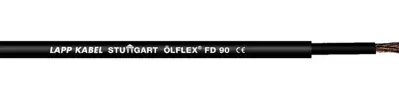

Single core cable, 0026614, LAPP
This product is designed for flexible use as well as for fixed installation subject to medium mechanical load conditions. It is also suitable for use in dry, damp or wet areas. The single core cable increased resistant to oils and at room temperature largely resistant to acids and alkalis. It is suitable for linear, automated movements. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.
Features
- Flame-retardant
- High oil-resistance
- Low-adhesive surface
- Power chain
- UV-resistant
Applications
- In power chains or moving machine parts
- For internal wiring of electric and electronic equipment in switch cabinets
- Specially designed for power circuits of servomotors driven by frequency converters
- Automotive industry, vehicles and stationary fuel cell systems
Technical specifications
| Core insulation material | PVC | |
| Colour | black | |
| Number of cores | 1 | |
| Protective conductor available | No | |
| Outer diameter | 16.2 mm | |
| Drag chain suitable | Yes | |
| AWG cross-section | AWG 1 | |
| Test voltage | 4 kV | |
| Rated voltage UL/CSA | 600 V | |
| Halogen free | No | |
| Core colour sequence | black | |
| Cable cross-section | 50 mm² | |
| Version | control line | |
| Material | PVC | |
| Cable material | copper, bright | |
| Rated voltage U0 | 600 V | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Conductor category | CL.6 = finest stranded | |
| Standard number | UL, CSA | |
| Rated voltage | 1 kV |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
