0026603 | LAPP

Name: PVC control line ÖLFLEX FD 90 1 G 16 mm², AWG 6, black, 0026603
Brand: LAPP
SKU: 33P152
Availability: InStock

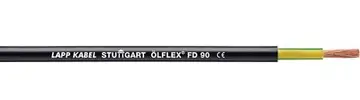

PVC control line ÖLFLEX FD 90 1 G 16 mm², AWG 6, black, 0026603

Order No.: 33P152

EAN: 4044774628592

MPN:

0026603

ÖLFLEX FD 90 1G16

Series: ÖLFLEX FD 90

Unit Price (€ / mtr.)

7.4256 € *

Standard delivery time from the manufacturer is: On Request

Total Price:

742.56 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Single core cable, 0026603, LAPP

This product is designed for flexible use as well as for fixed installation subject to medium mechanical load conditions. It is also suitable for use in dry, damp or wet areas. The single core cable increased resistant to oils and at room temperature largely resistant to acids and alkalis. It is suitable for linear, automated movements. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.

Features

Flame-retardant
High oil-resistance
Low-adhesive surface
Power chain
UV-resistant

Applications

In power chains or moving machine parts
For internal wiring of electric and electronic equipment in switch cabinets
Specially designed for power circuits of servomotors driven by frequency converters
Automotive industry, vehicles and stationary fuel cell systems

Technical specifications

Filter	Property	Value
	Product type	control line
	Number of cores	1
	Cable cross-section	16 mm²
	AWG cross-section	AWG 6
	Colour	black
	Material	PVC
	Outer diameter	10.5 mm
	Halogen free	No
	Protective conductor available	Yes
	Cable material	copper, bright
	Conductor category	CL.6 = finest stranded
	Core insulation material	PVC
	Core colour sequence	green-yellow
	Drag chain suitable	Yes
	Standard number	UL, CSA
	Rated voltage	1 kV
	Rated voltage U0	600 V
	Rated voltage UL/CSA	600 V
	Temperature range (unmoved)	-40 °C to 80 °C
	Temperature range (active)	-5 °C to 70 °C
	Test voltage	4 kV
