0026600 | LAPP

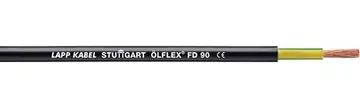

PVC control line ÖLFLEX FD 90 1 G 10 mm², AWG 8, black, 0026600
Unit Price (€ / mtr.)
5.2598 € *
Standard delivery time from the manufacturer is: 6 Weeks
Single core cable, 0026600, LAPP
This product is designed for flexible use as well as for fixed installation subject to medium mechanical load conditions. It is also suitable for use in dry, damp or wet areas. The single core cable increased resistant to oils and at room temperature largely resistant to acids and alkalis. It is suitable for linear, automated movements. The maximum tensile load is 15 N/mm² of conductor cross-section during installation and operation.
Features
- Flame-retardant
- High oil-resistance
- Low-adhesive surface
- Power chain
- UV-resistant
Applications
- In power chains or moving machine parts
- For internal wiring of electric and electronic equipment in switch cabinets
- Specially designed for power circuits of servomotors driven by frequency converters
- Automotive industry, vehicles and stationary fuel cell systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Cable material | copper, bright | |
| Version | control line | |
| Conductor category | CL.6 = finest stranded | |
| Number of cores | 1 | |
| Core insulation material | PVC | |
| Test voltage | 4 kV | |
| Cable cross-section | 10 mm² | |
| Core colour sequence | green-yellow | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Rated voltage UL/CSA | 600 V | |
| Standard number | UL, CSA | |
| Rated voltage U0 | 600 V | |
| Drag chain suitable | Yes | |
| Protective conductor available | Yes | |
| Outer diameter | 9 mm | |
| Colour | black | |
| Rated voltage | 1 kV | |
| Halogen free | No | |
| AWG cross-section | AWG 8 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
