0026352 | LAPP

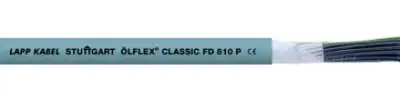

PUR control line ÖLFLEX CLASSIC FD 810 P 5 G 1.5 mm², AWG 16, unshielded, gray, 0026352
Order No.: 32P9947
EAN: 4044774625034
MPN:
0026352
ÖLFLEX CLASSIC FD 810 P 5G1,5
Series: ÖLFLEX CLASSIC FD 810 P
Unit Price (€ / mtr.)
5.4145 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
541.45 € *
Price list
Quantity
Price per unit*
100 mtr.
5.4145 €
500 mtr.
5.1170 €
*incl. VAT plus shipping costs
Subject to prior sale
Control line, 0026352, LAPP
The 0026300 is oil resistant high-flexible control cable with an outer sheath of polyurethane for flexible use and fixed installation.
Features
- Flame-retardant
- High oil-resistance
- Abrasion and notch-resistant
- Low-adhesive surface
Applications
- In power chains or moving machine parts
- Particularly in wet areas of machine tools and transfer lines
- Power circuits for electrical equipments used in automation engineering
- Suitable for use in measuring, control and regulating circuits
- Assembly lines, production lines, in all kinds of machines
- In dry, damp or wet interiors with normal mechanical stress conditions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PUR | |
| Cable material | copper, bright | |
| Version | control line | |
| Conductor category | CL.6 = finest stranded | |
| Number of cores | 5 | |
| Shielding | unshielded | |
| Core insulation material | PVC | |
| Test voltage | 4 kV | |
| Cable cross-section | 1.5 mm² | |
| Core colour sequence | black | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Rated voltage U0 | 300 V | |
| Drag chain suitable | Yes | |
| Protective conductor available | Yes | |
| Outer diameter | 9.1 mm | |
| Colour | gray | |
| Rated voltage | 500 V | |
| Halogen free | No | |
| AWG cross-section | AWG 16 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
