0021812 | LAPP

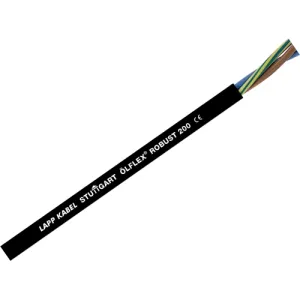

TPE connection cable ÖLFLEX ROBUST 200 4 G 2.5 mm², AWG 14, unshielded, black, 0021812
Order No.: 95F3448
EAN: 4044774581033
MPN:
0021812
ÖLFLEX ROBUST 200 4G2,5
Series: ÖLFLEX ROBUST 200
Unit Price (€ / mtr.)
7.0210 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
702.10 € *
Price list
Quantity
Price per unit*
100 mtr.
7.0210 €
500 mtr.
6.4379 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cables, non-shielded, halogen-free, color-coded conductors, type Lapp Kabel ÖLFLEX ROBUST 200.
Particularly rugged and flexible cable for applications in unfavorable ambient conditions, with enhanced UV protection and good resistance against water and chemicals
Cross-section 2.5 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 14 | |
| Number of cores | 4 | |
| Temperature range (unmoved) | -50 °C to 80 °C | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Drag chain suitable | No | |
| Product type | connection cable | |
| Material | TPE | |
| Test voltage | 4 kV | |
| Shielding | unshielded | |
| Temperature range (active) | -40 °C to 80 °C | |
| Cable material | copper, bright | |
| Rated voltage | 750 V | |
| Core insulation material | PP | |
| Standard number | EN 50525-2-51 | |
| Protective conductor available | Yes | |
| Rated voltage U0 | 450 V | |
| Core colour sequence | VDE 0293-308 | |
| Colour | black | |
| Cable cross-section | 2.5 mm² | |
| Outer diameter | 11.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
