0021806 | LAPP

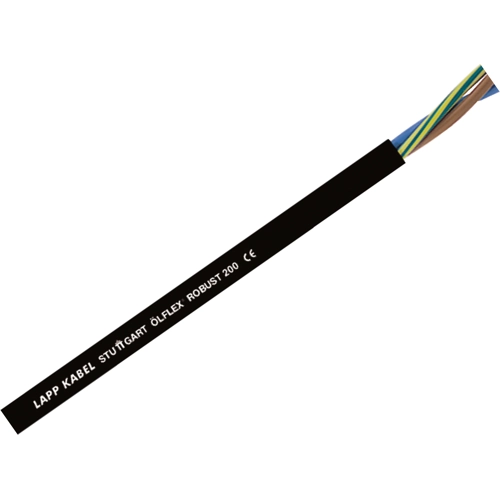

TPE connection cable ÖLFLEX ROBUST 200 3 G 1.5 mm², AWG 16, unshielded, black, 0021806
Order No.: 95F3436
EAN: 4044774580739
MPN:
0021806
ÖLFLEX ROBUST 200 3G1,5
Series: ÖLFLEX ROBUST 200
Unit Price (€ / mtr.)
3.6890 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
368.90 € *
Price list
Quantity
Price per unit*
100 mtr.
3.6890 €
500 mtr.
3.3796 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cables, non-shielded, halogen-free, color-coded conductors, type Lapp Kabel ÖLFLEX ROBUST 200.
Particularly rugged and flexible cable for applications in unfavorable ambient conditions, with enhanced UV protection and good resistance against water and chemicals
Cross-section 1.5 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | TPE | |
| Cable material | copper, bright | |
| Version | connection line | |
| Conductor category | CL.5 = fine stranded | |
| Number of cores | 3 | |
| Shielding | unshielded | |
| Core insulation material | PP | |
| Test voltage | 4 kV | |
| Cable cross-section | 1.5 mm² | |
| Core colour sequence | VDE 0293-308 | |
| Temperature range (unmoved) | -50 °C to 80 °C | |
| Temperature range (active) | -40 °C to 80 °C | |
| Standard number | EN 50525-2-51 | |
| Rated voltage U0 | 450 V | |
| Drag chain suitable | No | |
| Protective conductor available | Yes | |
| Outer diameter | 9.1 mm | |
| Colour | black | |
| Rated voltage | 750 V | |
| Halogen free | Yes | |
| AWG cross-section | AWG 16 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
