0019718 | LAPP

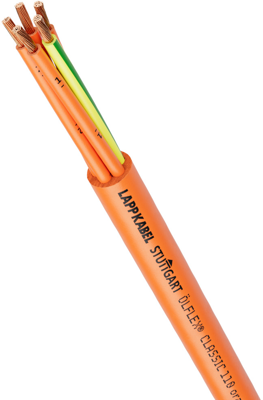

PVC control line ÖLFLEX CLASSIC 110 ORANGE 4 G 1.5 mm², unshielded, orange, 0019718
Order No.: 33P5905
EAN: 4044774546353
MPN:
0019718
ÖLFLEX CLASSIC 110 Orange 4G1,5
Series: ÖLFLEX CLASSIC 110 ORANGE
Unit Price (€ / mtr.)
3.7366 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
3.74 € *
Price list
Quantity
Price per unit*
1 mtr.
3.7366 €
10 mtr.
3.2249 €
50 mtr.
2.9631 €
100 mtr.
2.7013 €
*incl. VAT plus shipping costs
Subject to prior sale
Control cable, 0019718, LAPP
The 0019718 is an PVC insulated power and control cable for flexible use and fixed installation for normal mechanical stresses. It is suitable for use in dry, damp and wet areas. If using outdoors, observe the indicated temperature range and use with UV protection. This product is largely resistant to acids, alkalis and certain oils at room temperature.
Features
- Good chemical resistance
- Torsion-resistant
- Flame-retardant
- Space-saving installation due to small cable diameters
- High electrical performance due to 4 kV test voltage
Applications
- Electrical lighting and socket circuits for maintenance or repair purposes
- Undervoltage protection circuits
- Interlocking control circuits
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| Number of cores | 4 | |
| Version | control line | |
| Protective conductor available | Yes | |
| Core colour sequence | orange | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Test voltage | 4 kV | |
| Halogen free | No | |
| Cable cross-section | 1.5 mm² | |
| Rated voltage | 500 V | |
| Material | PVC | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Cable material | copper, bright | |
| Standard number | IEC, EN | |
| Colour | orange | |
| Rated voltage U0 | 300 V | |
| Outer diameter | 7.2 mm | |
| Drag chain suitable | No | |
| Shielding | unshielded |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BG |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
